625 Series
Video Marker and Pattern Generator
DVI-D, HDMI, TVI/AHD Hi-Definition
or NTSC/PAL Standard Definition

Circle, Rectangle, Crosshair Overlay



Description
Available for Progressive and Interlaced Formats up to 1080 P60:
•
DVI-D
•
HDMI (using DVI adapter)
•
TVI (DVI Output)
•
AHD (DVI Output)
•
HD-SDI (DVI Output)
•
NTSC/PAL Standard Definition


Features
•
Superimpose up to Four Objects Simultaneously
•
Available objects include Circles, Rectangles, and Crosshairs
•
Adjustable Rotation Individually or Collectively for Rectangles and Crosshairs
•
Eight Colors Individually or Collectively Selectable for Each Object
•
Adjustable Line Width for Each or All Objects
•
Adjustable Line Shadowing for Each or All Objects
•
Adjustable Line Intensity for Each or All Objects
•
Adjustable Position for Individual or All Objects

The 625 Series Video Markers allow you to overlay a combination of circles, rectangles, and crosshairs onto a video signal.

Colorado Video Markers overlay up to four objects. Each of the four objects can be independently set to be a circle, rectangle, or crosshair. Objects are collectively or independently controllable as to position, size, intensity, color, line-width, shadowing, and, for crosshairs and rectangles, rotation.

Each object can be individually turned on or off. Selectable object colors include White, Black, Red, Green, Blue, Cyan, Magenta, Yellow, or Off. The objects' lines can be adjusted for shadowing, intensity, and width, to optimize their visibility against similarly colored picture content. Outline width (thickness) and intensity are adjustable.

For similar features, consider these units:

If you need a line generator, consider: Tilted Line Video Cross Hair Generator - 623 Series
If you need a circle generator, consider: Video Circle Generator - 624 Series

Functionality Synonyms:
Video Line Generator
Video Cross Hair Generator
Video Cross Line Generator
Video Crossline Generator
Video Crosshair Generator
Video Pattern Generator
Video Tick Mark Generator
Video XY Indicator
Video XY Positioner
Video Marker
Video Box Generator
Video Box and Line Generator
Specifications

Standard Definition Units:

VV625CS(NTSC & PAL)
Owner's Manual:
VV625CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (CVBS) (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Superimposes up to 4 Objects onto a standard definition video signal
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
VV625CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

VD625CS (NTSC/PAL to DVI)
Owner's Manual:
VD625CS.pdf
Input Signal:
NTSC or PAL Composite Video (CVBS)
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Superimposes up to 4 Objects onto a standard definition video signal
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
VD625CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

High Definition Units:

TD625CS (TVI/AHD to DVI/HDMI)
Owner's Manual:
Manual-TD625CS.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes up to 4 Objects onto a high definition video signal
Converts TVI, CVI, or AHD Input to DVI-D Output
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
TD625CS: TVI/AHD Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

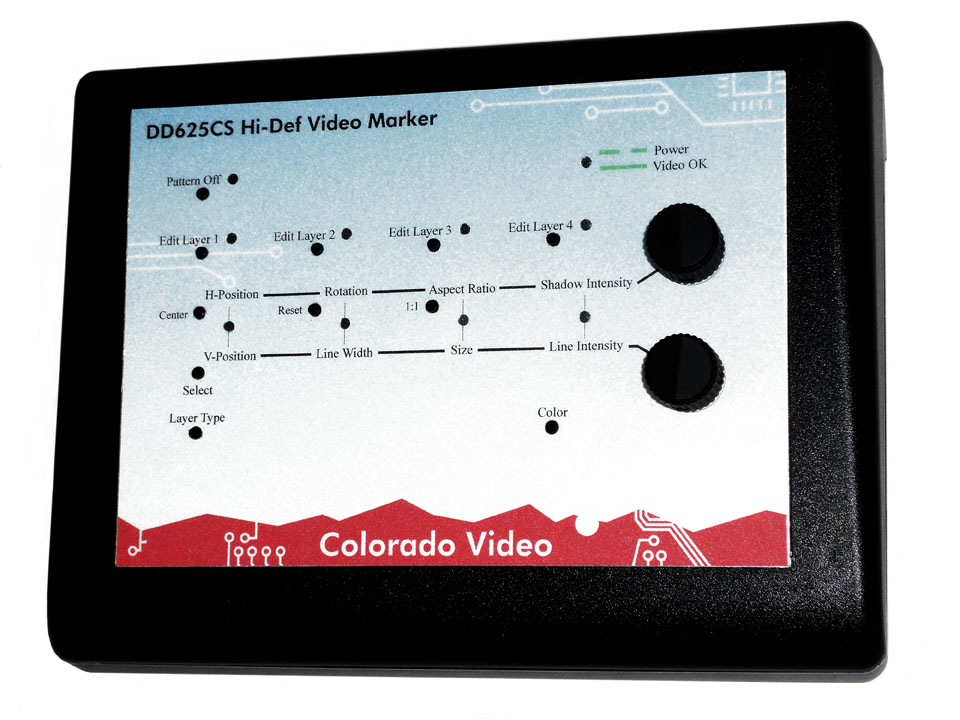

DD625CDS (DVI/HDMI)
Owner's Manual:
Manual-DD625CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Superimposes up to 4 Objects onto a high definition video signal
Superimposes four lines onto real-time High Definition Video
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
DD625CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

HD625CS (HD-SDI to DVI/HDMI)
Owner's Manual:
Manual-HD623CS.pdf
Input Signal:
HD-SDI; 720p50/60, 1080i50/60, 1080p24/25/30/50/60
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes up to 4 Objects onto a high definition video signal
Converts HD-SDI Input to DVI-D Output
Controls :
Pattern Display (Button Toggle): On/Off
Edit Layer 1 (Button Toggle): Selects/Deselects Layer 1 for editing.
Edit Layer 2 (Button Toggle): Selects/Deselects Layer 2 for editing.
Edit Layer 3 (Button Toggle): Selects/Deselects Layer 3 for editing.
Edit Layer 4 (Button Toggle): Selects/Deselects Layer 4 for editing.
Center (Button): Moves Selcted Layers to Image Center
Reset (Button): Resets Selected Layers to Zero Rotation
1:1 (Button): Resets Aspect Ratio, Sets Selected Layers to 1:1 H:V Dimensions
Select (Button): Steps Through Parameters to be Adjusted by Multi-Function Knobs for Selected Layers: Position/Rotation/Line Width/Aspect Ratio/Size/Shadow Intensity/Line Intensity
Layer Type (Button): Steps Through Object Types for Selected Layers: Circle/Rectangle/Crosshair
Color (Button): Steps Through Color Pallet (White/Black/Red/Green/Blue/Magenta/Cyan/Yellow) for Selected Layers
Knob (upper Multi-Function Knob) Adjusts H-Position, Rotation, Aspect Ratio, or Shadow Intensity for Selected Layers
Knob (lower Multi-Function Knob) Adjusts V-Position, Line Width, Size, or Line Intensity for Selected Layers
Indicators:
Power (Flashing), Video OK (Steady)
Pattern Off
Layer 1 Selected for editing.
Layer 2 Selected for editing.
Layer 3 Selected for editing.
Layer 4 Selected for editing.
Multi-Function Knobs Adjust H-Position & V-Position for Selected Layers
Multi-Function Knobs Adjust Rotation & Line Width for Selected Layers
Multi-Function Knobs Adjust Aspect Ratio & Size for Selected Layers
Multi-Function Knobs Adjust Shadow Intensity & Line Intensity for Selected Layers
Model:
HD625CS: HD-SDI Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
VV625CS
$1900.00
VD625CS
$2050.00
TD625CS
$2300.00
DD625CS
$2100.00
HD625CS
$2300.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Marker
$0.00
DVIM13DVIM
$29.00
DVIM6HDMI
$45.00
DVIMHDMIF
$18.99

Looking for Similar Features?
You may be interested in these similar products:

Standard and High-Definition
Tilted Line Generators
Model
Description
Price
Add to Cart
VV623CS
$1700.00
VD623CS
$1850.00
TD623CS
$2100.00
DD623CS
$1900.00
HD623CS
$2100.00
Option-12
12VDC Power Input (normally 5VDC)
$100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any High-Definition Cross Hair or Line Generator
$0.00

Standard and High-Definition
Single Circle and Line Generators
Model
Description
Price
Add to Cart
VV624DS
$1700.00
VD624DS
$1850.00
TD624DS
$2100.00
DD624DS
$1900.00
HD624DS
$2100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Circle Generator
$0.00

All prices F.O.B. Boulder, Colorado.

Administrative: 539 W. Commerce St, #7878, Dallas TX 75208 USA
Shipping: 5101 Saint Vrain Rd, Longmont, CO 80503 USA
sales@colorado-video.com

Copyright 1995-2023   Colorado Video, Inc.
