623 Series
Video Cross Hair Generator
DVI-D, HDMI, TVI/AHD Hi-Definition
or NTSC/PAL Standard Definition

Superimpose Horizontal and Tiltable Vertical Lines



Description
Available for Progressive and Interlaced Formats up to 1080 P60:
•
DVI-D
•
HDMI (using DVI adapter)
•
TVI (DVI Output)
•
AHD (DVI Output)
•
HD-SDI (DVI Output)
•
NTSC/PAL Standard Definition

Features
•
Line Color Selectable; White, Black, Red, Green, Cyan, Magenta, Blue, Off
•
Solid or Segmented (dashed) Lines with adjustable segment length
•
Line Thickness Adjustable
•
Line Shadow Adjustable; Optimize for Visibility

Applications
•
Line Striping Highways & Roads
•
Laser Marking & Welding
•
Wafer Sawing & Cutting
•
Component Pick & Place
•
Printing Alignment

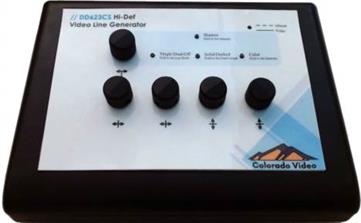

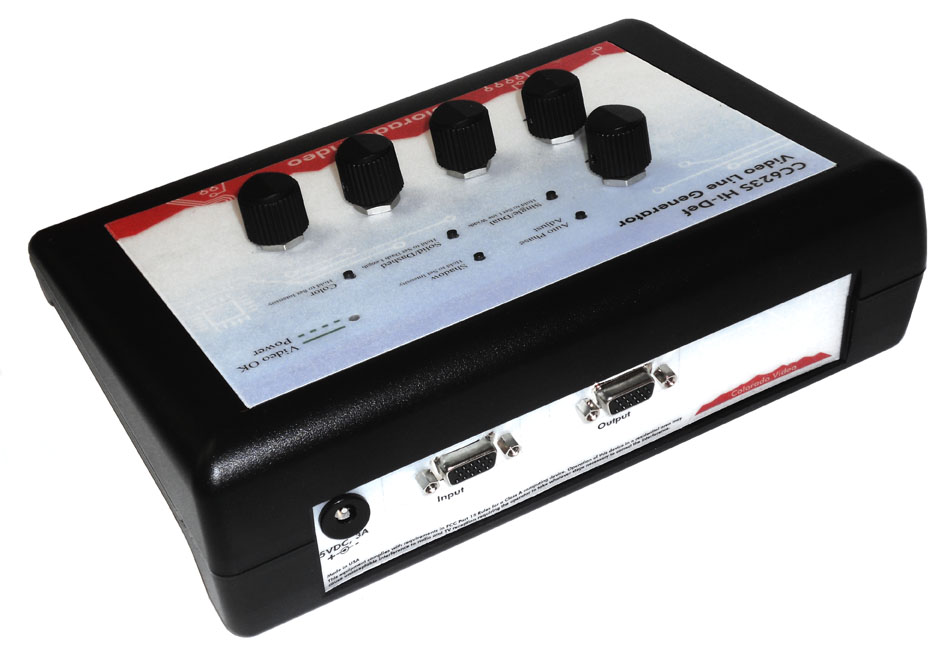

Colorado Video's Model 623 Series Video Line Generator can superimpose or overlay up to two horizontal and two tiltable vertical lines onto a real-time video signal. The user can adjust the position of all lines by means of front panel controls. The user can also set the overlayed lines to a variety of colors or Off, and choose between dashed or solid lines. Lines can be shadowed to improve their visibility and their thickness can be adjusted over a wide range.

For additional features, consider these units:

    If you need a circle generator, consider: High Definition Video Circle Generator - 624 Series
    If you need a variety of patterns, consider: High Definition Video Marker Circle, Rectangle, Crosshair Overlay Generators - 625 Series

Functionality Synonyms:
Video Line Generator
Video Cross Hair Generator
Video Cross Line Generator
Video Crossline Generator
Video Crosshair Generator
Video Pattern Generator
Video Tick Mark Generator
Video XY Indicator
Video XY Positioner
Video Marker
Video Tilted, Slanted, Sloped, or Angled Line Generator
Specifications

Standard Definition Units:

VV623CS(NTSC & PAL)
Owner's Manual:
VV623CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (CVBS) (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Superimposes four lines onto real-time standard definition video
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Vertical Line Angle 1
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
VV623CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

VD623CS (NTSC/PAL to DVI)
Owner's Manual:
VD623CS.pdf
Input Signal:
NTSC or PAL Composite Video (CVBS)
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time standard definition video
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Vertical Line Angle 1
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
VD623CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

High Definition Units:

TD623CS (TVI/AHD to DVI/HDMI)
Owner's Manual:
Manual-TD623CS.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Converts TVI, CVI, or AHD Input to DVI-D Output
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Vertical Line Angle 1
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
TD623CS: TVI/AHD Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

DD623CDS (DVI/HDMI)
Owner's Manual:
Manual-DD623CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Vertical Line Angle 1
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
DD623CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

HD623CS (HD-SDI to DVI/HDMI)
Owner's Manual:
Manual-HD623CS.pdf
Input Signal:
HD-SDI; 720p50/60, 1080i50/60, 1080p24/25/30/50/60
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Converts HD-SDI Input to DVI-D Output
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Vertical Line Angle 1
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
HD623CS: HD-SDI Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
VV623CS
$1700.00
VD623CS
$1850.00
TD623CS
$2100.00
DD623CS
$1900.00
HD623CS
$2100.00
Option-12
12VDC Power Input (normally 5VDC)
$100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any High-Definition Cross Hair or Line Generator
$0.00
DVIM13DVIM
$29.00
DVIM6HDMI
$45.00
DVIMHDMIF
$18.99

Looking for Additional Features?
You may be interested in these similar products:

Concentric Circle and Line
Generators
Model
Description
Price
Add to Cart
VV624DS
$1700.00
VD624DS
$1850.00
TD624DS
$2100.00
DD624DS
$1900.00
HD624DS
$2100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Circle Generator
$0.00

Pattern Generators
Model
Description
Price
Add to Cart
VV625CS
$1900.00
VD625CS
$2050.00
TD625CS
$2300.00
DD625CS
$2100.00
HD625CS
$2300.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Marker
$0.00

All prices F.O.B. Boulder, Colorado.
