Cross Hair and Line Generator for
Highway Striping


619HWY
Video Cross Hair & Video Cross Line Generator


Now Available for High-Definition!

Description

Features
Two Horizontal & Two Vertical Lines
Pattern Selectable: White, Black, or Off
Lines Selectable: Solid or Dashed
Selectable: One or Two H&V Line Sets
Adjustable Line Position
NTSC or PAL Composite Video
75 Ohm BNC Input
Small ABS Tabletop Style Case
12 VDC Power

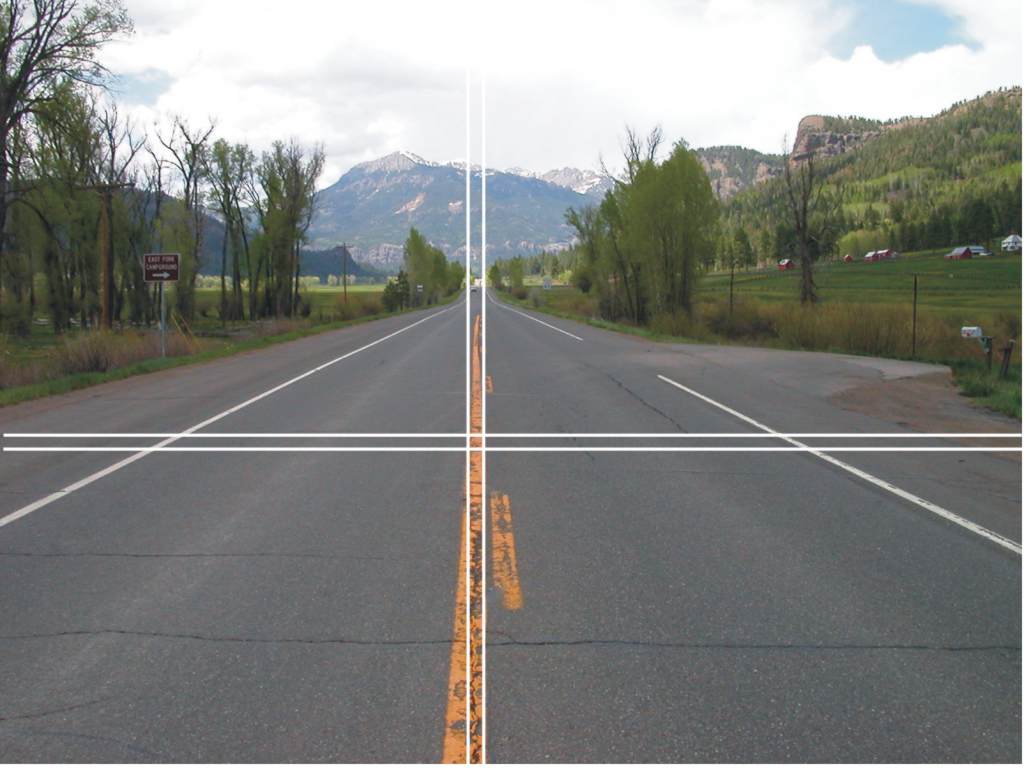

Equipped with carefully mounted video cameras, an adjustable video cross hair generator, and a video monitor in the cab, a highway line striping truck more easily puts highway stripes precisely where they belong with our video equipment.

The Model 619HWY highway line striping line generator equipment can superimpose horizontal and vertical lines onto a real-time video signal. The user can adjust the position of all lines by means of front panel controls. Switch settings allow the user to set the superimposed or overlayed lines to White, Black, or Off, dashed or solid lines, and one or two Horizontal & Vertical line sets.

Dashed Lines
Select between Solid or segmented lines with the flip of a switch
Option available for all 619 Series Models
Specifications

619HWY (NTSC & PAL)
Owner's Manual:
619HWY: Manual-619HWY.pdf
Size:
6.9"W x 4.9"L x 2.5"sloping to 1.5"H
Mounting:
Free standing desktop
Power Connector:
5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input:
12 VDC
Chassis:
Black ABS
Video Input/Output:
1Vp-p nominal, composite, 75 ohm, loop-thru input, (s-video optional)
Options:
PAL Video Compatibility, S-Video, Segmented Lines
I/O Connectors:
BNC (4-pin mini-DIN for s-video)
Controls

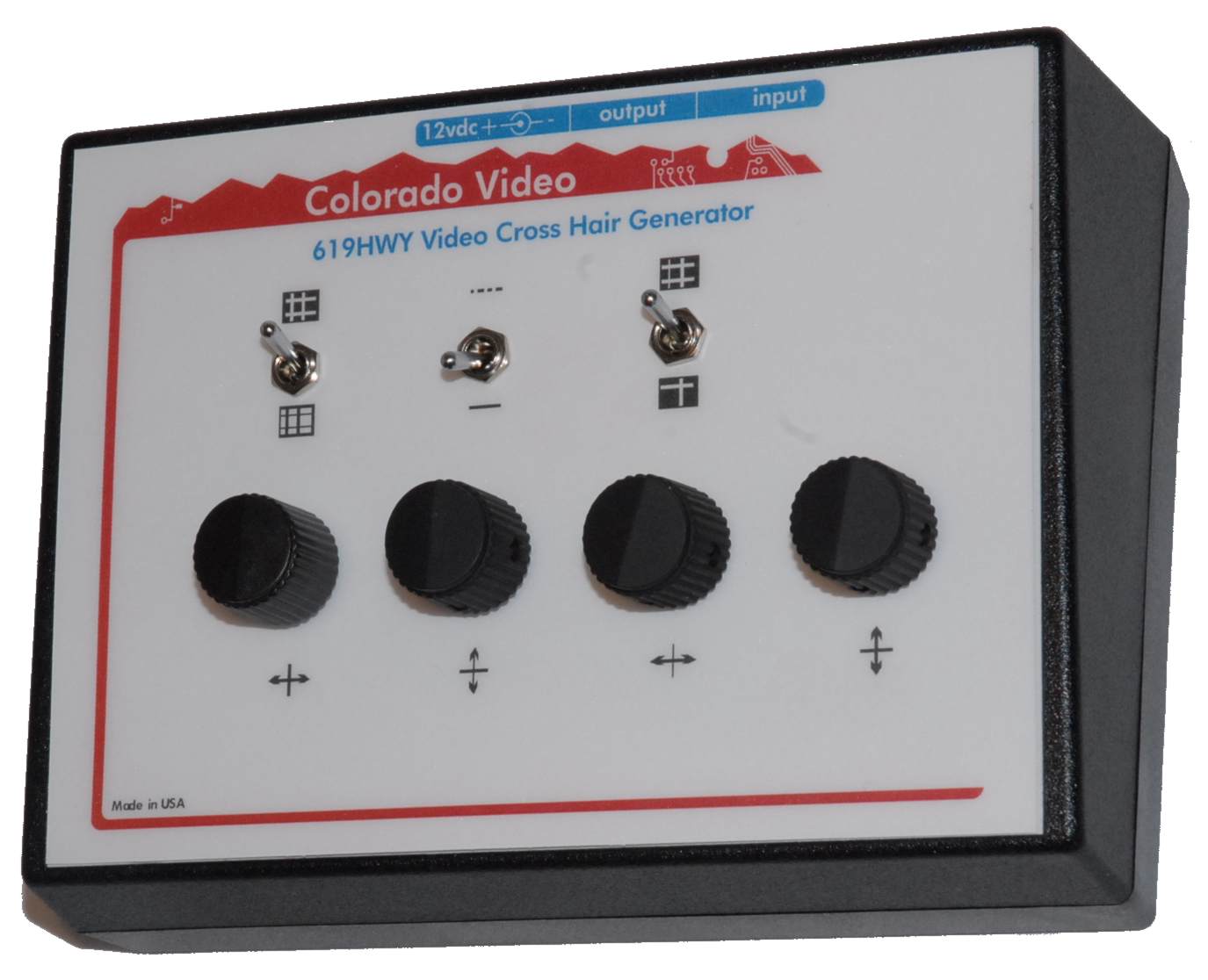

619HWY Video Cross Hair Generator
Display (switch): Sets lines to off, black, or white
Position (4) (provided for each line)
Lines: Dashed/Solid
Cross Hairs: 1 set/2 sets

Online Ordering and Pricing
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

Looking for Additional Features?
You may be interested in these similar products:

Cross Hair Generator with
Screwdriver Adjustment Controls
Model
Description
Price
Add to Cart
Option-S
S-video for any model 619
$60.00
Option-M
Switch between Solid or Dashed Lines, for any video line generator
$40.00
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

Cross Hair Generators with VGA Output
Model
Description
Price
Add to Cart
Option-M
Switch between Solid or Dashed Lines, for any video line generator
$40.00
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

High-Definition Cross Hair Generator
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 620 Cross Hair or Line Generator
$45.00

Cross Hair Generator
with Tiltable Vertical Lines
for Standard and High Definition Video
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 623 Cross Hair or Line Generator
$45.00

All prices F.O.B. Boulder, Colorado.
