620 Series
Video Cross Hair Generator
DVI-D, HDMI, VGA (Component) Hi-Definition

Superimpose Horizontal and Vertical Lines


Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI/AHD (DVI Output)
HD-SDI (DVI Output)

Features
Line Color Selectable; White, Black, Red, Green, Cyan, Magenta, Blue, Off
Solid or Segmented (dashed) Lines with adjustable segment length
Line Thickness Adjustable
Line Shadow Adjustable; Optimize for Visibility

Applications
Line Striping Highways & Roads
Laser Marking & Welding
Wafer Sawing & Cutting
Component Pick & Place
Printing Alignment

Colorado Video's Model 620 Series High Definition HD Video Line Generator can superimpose or overlay up to two horizontal and two vertical lines onto a real-time video signal. The user can adjust the position of all lines by means of front panel controls. The user can also set the overlayed lines to a variety of colors or Off, and choose between dashed or solid lines. Lines can be shadowed to improve their visibility and their thickness can be adjusted over a wide range.

For additional features, consider these units:

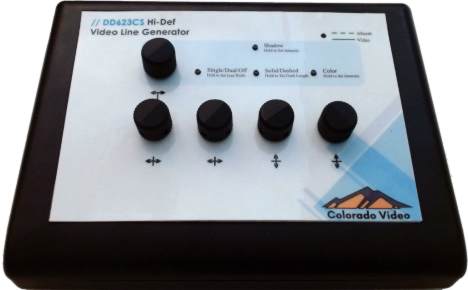

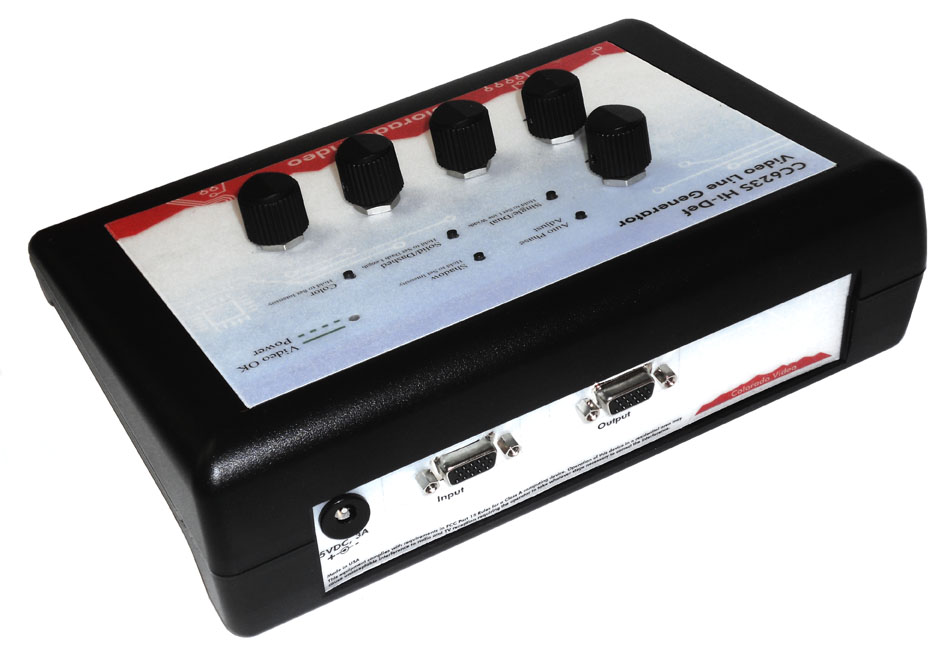

    If you need a line generator with tiltable vertical lines, consider: High Definition Video Tilted Line Generator - 623 Series
    If you need a circle generator, consider: High Definition Video Circle Generator - 624 Series
    If you need a variety of patterns, consider: High Definition Video Marker Circle, Rectangle, Crosshair Overlay Generators - 625 Series

Functionality Synonyms:

Video Line Generator
Video Cross Hair Generator
Video Cross Line Generator
Video Crossline Generator
Video Crosshair Generator
Video Pattern Generator
Video Tick Mark Generator
Video XY Indicator
Video XY Positioner
Video Marker
Specifications

High Definition Units:


TD620ADS
(TVI/AHD to DVI/HDMI)
Owner's Manual:
Manual-TD620ADS.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Converts TVI, CVI, or AHD Input to DVI-D Output
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
TD620ADS: TVI/AHD Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

DD620ADS
(DVI/HDMI)
Owner's Manual:
Manual-DD620ADS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
DD620ADS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

HD620ADS
(HD-SDI to DVI/HDMI)
Owner's Manual:
Manual-HD620ADS.pdf
Input Signal:
HD-SDI; 720p50/60, 1080i50/60, 1080p24/25/30/50/60
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Superimposes four lines onto real-time High Definition Video
Converts HD-SDI Input to DVI-D Output
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
HD620ADS: HD-SDI Input, DVI/HDMI Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

CC620ADS
(VGA)
Owner's Manual:
Manual-CC620ADS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Superimposes four lines onto real-time High Definition Video
Controls :
Line Shadow: On/Off/Hold to Set Shadow Intensity (push Button)
Single Cross Hair/Dual Cross Hair/Hold to Set Line Width (push Button)
Solid/Dashed/Hold to Set Dash Length (push Button)
Color/Hold to Set Line Intensity (push Button)
Vertical Position V-Line 1 (knob)
Vertical Position V-Line 2 (knob)
Horizontal Position H-Line 1 (knob)
Horizontal Position H-Line 2 (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Model:
CC620ADS: VGA Input and Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 620 Cross Hair or Line Generator
$45.00

Looking for Additional Features?
You may be interested in these similar products:

Cross Hair Generator
with Tiltable Vertical Lines
for Standard and High Definition Video
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 623 Cross Hair or Line Generator
$45.00
Option-12
12VDC Power Input (normally 5VDC)
$60.00

All prices F.O.B. Boulder, Colorado.
