309 Series

High Definition Video Micrometer - Protractor
DVI-D, HDMI, HD-SDI, TVI/AHD, or VGA (Component)


Measure Dimensions and Angles in a High-Definition Video Image





Description

Measure Dimensions
Horizontal
Vertical
Diagonal
Point-to-Point
Stores 4 Different Calibrations
Handles 16 x 9, 4 x 3, and Other Picture Aspect Ratios
Handles Square or Rectangular Pixel Formats


Measure Angles
Angle Between Two Cursors
Vertex On- or Off-Screen


Measurement Cursors
Choice of Colors
Adjustable Cursor-Line Width
Adjustable Cursor-Line Intensity/Transparancy
Adjustable Line Shadowing

Measurement Display
On-Screen
Choice of Measurement Units
Automatic Conversion Between Measurement Units
Adjustable Display Size and Position

On-Screen Menu
Accesses All Functions
Adjustable Menu Size and Position
Friendly Icons and Terminology Easily Navigated

The Model 309 Series Hi-Def Video Micrometer/Protractor enables an operator to perform horizontal (X), vertical (Y), diagonal, point-to-point, and angle measurements. Separate X-axis and Y-axis calibration is available, but not mandatory, to assure accuracy for systems using rectangular pixels or anamorphic optics. Four separate calibrations can be stored and retrieved for multiple measurement setups.

The Hi-Def Video Micrometer & Protractor for video image measurement and video marking, provides the means to take horizontal, vertical, and diagonal, dimensionsal measurements of objects or measure angles in a real-time video image.

The Video Caliper superimposes two vertical, horizontal, or diagonal, cursor lines, or two cursor points onto the video display. The user can adjust the position and rotation of these cursors by means of front panel controls. In most modes, one control sets the distance or angle between the cursors by moving one cursor only. The second control moves both cursors across the screen while maintaining the distance and angle between them. This arrangement allows comparison of objects across the image without disturbing the relationship between the cursors. An on-screen display, of adjustable size and position indicates the measurement in a variety of selectable units. The cursors can be individually set to a variety of colors, and provide adjustable width and intensity/transparancy.

Four separate dimensional calibrations can be stored for easy recall and use. Units are automatically converted in order to preserve calibration if they are changed. For instance, calibration can be made in inches and readings taken in centimeters. Calibration or calibration reselection must be made any time the optics or distance between the image sensor and the object under scrutiny change.
Power input requirement is 5 VDC at at less than 1 Amp. A UL listed AC adapter is included.

Distance Measurements can be made in any direction
Cursor Color Menu: Black, White, Red, Orange, Yellow, Green, Cyan, Blue, and Magenta.
Cursor Line Width and Cursor Point Size adjustable from 1/4 to 10 pixels.
Adjustable Cursor Intensity/Transparancy
On-Screen Dimension and Menu Windows Adjustable for Size and Position


(Click to Enlarge)

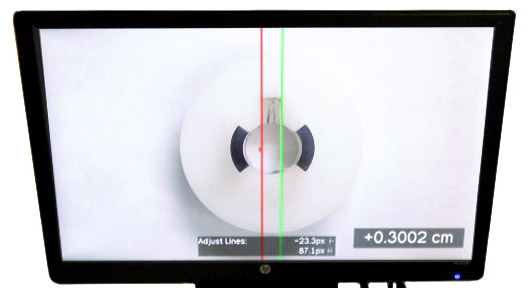

Horizontal Measurement Between Two Vertical Cursor Lines

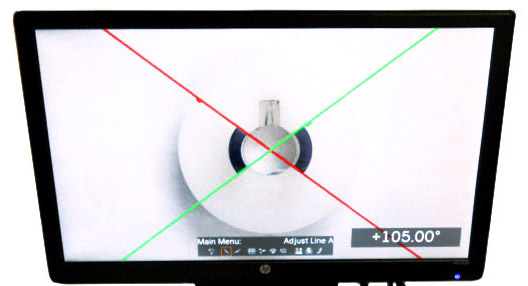

Angle Measurement Between Two Cursor Lines

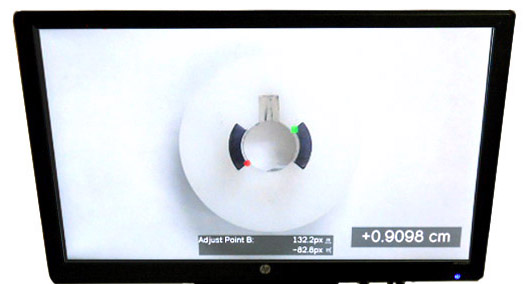

Diagonal Measurement Between Two Cursor Points

Functionality Synonyms:
Video Caliper
Video Micrometer
Video Scaler
Video Based Measurement
Video Measurement
Video Dimension Analysis
Video Marking
Specifications

High Definition Units:

TD309CS, TD309C
(TVI/AHD to DVI)
Owner's Manual:
TD309CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Provides the means to measure dimensions and angles in high definition
Converts TVI or AHD Input to DVI-D Output
Controls :
Button: Multiple Functions
Knob I: (upper Multi-Function Knob)
Knob II: (lower Multi-Function Knob)
Indicators:
Power (Flashing), Video OK (Steady)
Model:
TD309CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD309C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

DD309CS, DD309C
(DVI/HDMI)
Owner's Manual:
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Provides the means to measure dimensions and angles in high definition
Controls :
Button: Multiple Functions
Knob I: (upper Multi-Function Knob)
Knob II: (lower Multi-Function Knob)
Indicators:
Power (Flashing), Video OK (Steady)
Model:

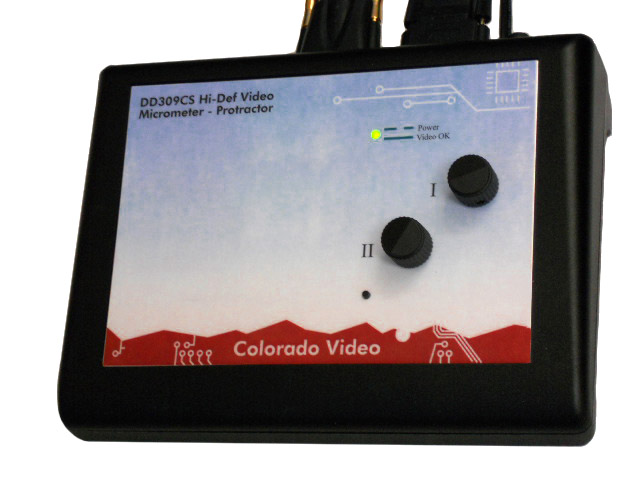

DD309CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop

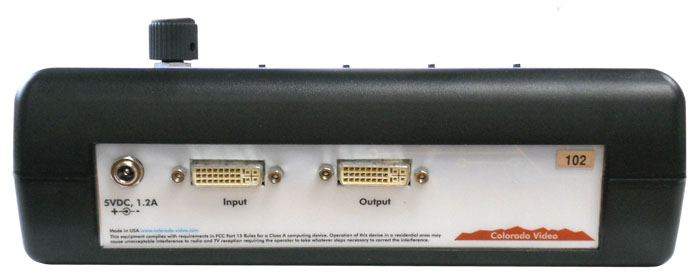

Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD309C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD309CS, HD309C
(HD-SDI to DVI)
Owner's Manual:
HD309CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Provides the means to measure dimensions and angles in high definition
Converts HD-SDI Input to DVI-D Output
Controls :
Button: Multiple Functions
Knob I: (upper Multi-Function Knob)
Knob II: (lower Multi-Function Knob)
Indicators:
Power (Flashing), Video OK (Steady)
Model:
HD309CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD309C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC309CS, CC309C
(VGA)
Owner's Manual:
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Provides the means to measure dimensions and angles in high definition
Controls :
Button: Multiple Functions
Knob I: (upper Multi-Function Knob)
Knob II: (lower Multi-Function Knob)
Indicators:
Power (Flashing), Video OK (Steady)
Model:
CC309CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC309C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Caliper
$65.00

All prices F.O.B. Boulder, Colorado.
