619 Series
Video Cross Hair & Video Cross Line Generator


Now Available for High-Definition!

Description

Features
Pattern Selectable: White, Black, or Off
Adjustable Line Position
High Precision Multi-turn Controls
Recessed controls make accidental line movement
impossible
NTSC or PAL Video (specify when ordering)
S-Video Optional (Composite Standard)
Small ABS Case
+5 VDC Power (120 VAC Adapter Included where
appropriate)
Hi-Z Loop-thru input

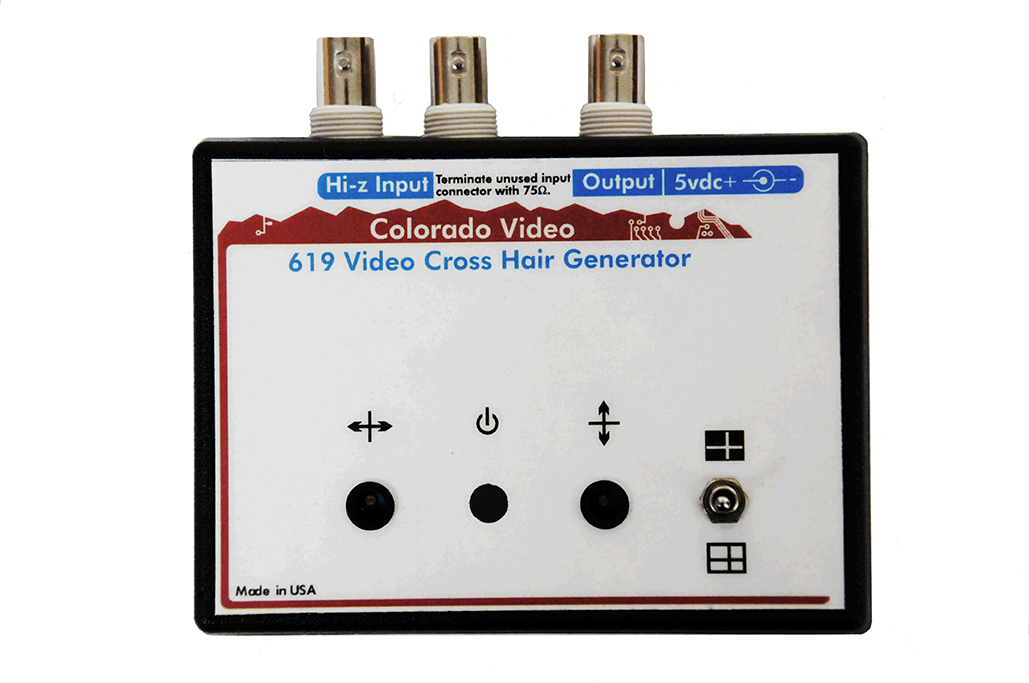

The Model 619 Video Cross Hair Generator superimposes a crosshair on to real-time video signals. The user can adjust the position of these lines by means of high precision multiple turn controls. Controls are screwdriver adjustable to make accidental readjustment impossible. With a front panel switch, the user can set the lines to White, Black, or Off.

A variety of options are available for the 619, including dual cross hairs, s-video, solid or dashed lines, two lines displayed horizontally, or two lines displayed vertically.

Units featuring loop-through input with two input connectors allow connection of both a video source and a destination to the input. For instance, a camera can be connected to one of the Model 619's input connectors and a monitor to the other. In this way, the video image can be observed directly as it comes from the camera (without cross lines or cross hair) via the loop-through input, while the image with the cross lines or cross hair is present at the Model 619's output.


Dashed Lines (Option "M")
Select between Solid or segmented lines with the flip of a switch
Option available for all 619 Series Models

Available Line Combinations
One Horizontal and One Vertical Line
Model 619

Two Vertical Lines
Model 619YY

Two Horizontal Lines
Model 619XX

Two Horizontal and Two Vertical Lines
Model 619D

Functionality Synonyms:

Video Line Generator
Video Cross Hair Generator
Video Cross Line Generator
Video Crossline Generator
Video Crosshair Generator
Video Pattern Generator
Video Tick Mark Generator
Video XY Indicator
Video XY Positioner
Video Marker

Applications
Automated Component Pick & Place Precision Targeting
Cross hairs or lines superimposed on video systems used for setting up automated electronic component pick and place machines allow an operator to precisely train the machine as to where components belong on a PC board.

Precision Laser Marking & Laser Welding
An adjustable video cross hair or line equipped video camera and monitor system can indicate where a powerful laser is going to hit before it's pulsed.

Silicon Wafer Precision Cutting and Sawing
A video picture with crosslines overlaid can facilitate proper alignment of a silicon wafer or other material before it's cut.

Precision Highway Line Striping
Equipped with carefully mounted cameras, a video cross hair or line generator, and a video monitor in the cab, a highway line striping truck easily paints highway stripes precisely where they belong.

Accurate Docking of Blimps and Other Large Vessels
Some blimps and other large vessels are equipped with video cameras and a cross hair or line generator to help pilots accurately guide these vehicles for mooring.

Multiple Pass Printing Process Alignment
Cross hair or crossline equipped video systems can help assure proper alignment for multiple pass printing processes.
Specifications

All Units: 619, 619YY, 619XX, 619D (NTSC or PAL)
Owner's Manual:
619: Manual-619.pdf
619YY: Manual-619YY.pdf
619XX: Manual-619XX.pdf
619D: Manual-619D.pdf
Size:
4.4"W x 3.25"L x 1.5"H
Mounting:
Free standing desktop
Power Connector:
5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input:
5 VDC Regulated (120 VAC Adaptor included where appropriate)
Chassis:
Black ABS
Video Input/Output:
1Vp-p nominal, composite, 75 ohm, loop-thru input, (s-video optional)
Video Signal Gain:
0.89+0.04
Options:
PAL Video Compatibility, S-Video, Segmented Lines
I/O Connectors:
BNC (4-pin mini-DIN for s-video)
Indicator:
Power LED
Model:
619 Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
  Position (2) (provided for each line)
Model:
619YY Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
  Position (2) (provided for each line)
Model:
619XX Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
  Position (2) (provided for each line)
Model:
619D Video Cross Hair
Controls: Display (switch): Sets lines to off, black, or white
  Position (4) (provided for each line)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-S
S-video for any model 619
$60.00
Option-M
Switch between Solid or Dashed Lines, for any video line generator
$40.00
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

Looking for Additional Features?
You may be interested in these similar products:

Cross Hair Generators with VGA Output
Model
Description
Price
Add to Cart
Option-M
Switch between Solid or Dashed Lines, for any video line generator
$40.00
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

Cross Hair Generator for Highway Striping
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 619 Cross Hair or Line Generator
$25.00

High-Definition Cross Hair Generator
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 620 Cross Hair or Line Generator
$45.00

Cross Hair Generator
with Tiltable Vertical Lines
for Standard and High Definition Video
Model
Description
Price
Add to Cart
Option-12
12VDC Power Input (normally 5VDC)
$60.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any 623 Hair or Line Generator
$45.00

All prices F.O.B. Boulder, Colorado.
