618 Series
Video Comparator
DVI-D or HDMI Hi-Definition
NTSC/PAL Standard Definition


Split Screen, Mix, Subtract, Freeze





Description
Available for Progressive and Interlaced Formats up to 1080 P60:
•
DVI-D
•
HDMI (using DVI adapter)
•
NTSC/PAL Standard Definition

Features
•
2 Inputs, 1 Output
•
Video Split Screen
•
Left-Right or Top-Bottom
•
Adjustable Split Position
•
Video Mixing
•
Double Exposure Effect
•
Adjust the mixed proportion of each input
•
Fade, dissolve, or overlap from one picture to another
•
Video Subtraction
•
See only the difference between pictures
•
See only motion by continually showing the difference between successive frames.
•
Freeze either input
•
Store an image for reference or continual comparison

If you are looking for these functions separately, consider these units:

Video Screen Splitting: Model 613 Series
Video Mixing: Model 614 Series
Video Subtraction: Model 442 Series

Split Screen Mode
Split Screen Mode allows portions of each of two pictures to be displayed in a corresponding portion of a video display. This mode can split a video image, wipe or display two video images or a dual video image, one image over the other, top to bottom, or side by side, to make portions of each viewable on a single monitor.

A front panel control selects whether the screen is split horizontally or vertically. A control knob determines the proportion of the screen allocated to each source, adjustable from 0% to 100%. The user can freeze either of the inputs and either input can be viewed exclusively by push of a button.
Given Input A
and Input B
Split Vertically
Or Horizontally
Position of split is adjustable
Positions can be swapped
Squeeze Mode
Normally, a video screen splitter cuts away a portion of each picture in order to make room on the screen or monitor for the corresponding portion of the other picture. For instance, if set for a 50%/50% split display, only 50% of each picture will be visible. Therefore, special attention should be taken in aiming the cameras at their subjects.

The Model 618 Series provides a unique "anamorphic" mode that squeezes two full pictures to fit, in their entirety, side-by-side, on your display in a 50%/50% split. This optional squeezing causes subjects to look "tall and skinny".
Given Input A
and Input B
Right/Left Squeeze Mode squeezes both images instead of cropping to fit
(50-50 Vertical Split only)

Mix Mode
The 618 Series Mix mode provides a double exposure effect by adding two video signals or images together.

The front panel control knob can be used to fade from one input to the other or to add the two sources together to varying degree.
Given Input A
and Input B
Output
Mix Ratio is adjustable

Subtract Mode
Subtract or Compare mode allows you to subtract or compare two video images. The unit performs a video image comparison by subtracting the image stored in its memory from the active picture at its input or subtracting one live picture from another live picture. Comparison (subtraction) of two live video streams is also possible. This mode is very useful for inspection, registration, interferometry, quality control, surveillance and other applications where an easily viewed comparison of two video images can be used for decision making or process control.

The Subtract or Compare mode has two selectable output modes. One provides the difference plus 0.5. The other provides the absolute value of the difference. Additionally, a button is provided to invert the output thereby showing the reference minus the input instead of the input minus the reference. A "Difference Threshold" control allows adjustment of the unit's sensitivity to differences.
Given Input A
Subtract Input B
Output
Mix Ratio is adjustable
Given Input B
Subtract Input A
Output
Mix Ratio is adjustable

An additional operational mode allows subtraction of each video frame from the previous frame to provide "frog's eye" capability, displaying only motion in the scene being monitored by the input video camera.
Given Input A
Subtract Input A
Output
Output
Mix Ratio is adjustable

Applications
•
Surveillance
Images from two security cameras can be combined onto one video screen, making it easier for personnel to monitor both camera locations
•
Legal, Courtroom
Video tapes, conferences, and courtroom proceedings can use the Model 613 Series to show two parties on one screen or monitor
•
Forensics Image Comparison
The Model 613 series can be used to present a reference image side-by-side with an image under examination, making image comparison and analysis easier
•
Edge Comparison and Alignment for Large Objects
Opposite side or ends of large items can be closely viewed simultaneously, side-by-side or top to bottom, with two carefully aligned cameras connected to a single monitor or screen

Functionality Synonyms:
Video Screen Splitter
Video Monitor Splitter
Video Split Screen
Video Wiper
Video Display Splitter
Video Signal Mixer
Video Dissolver
Video Fader (Two Input Fader)
Video Combiner
Video Overlay
Video Peak Value Detector
Video Peak Store
Video Subtractor
Video Comparator
Video Image Comparison
Subtract Video
Specifications

Standard Definition Units:

VV618CS (NTSC & PAL)
Owner's Manual:
VV618CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Mix two video images in a double exposure effect
Subtracts, and compares two video inputs
Freeze Frame
Controls :
Mode: Split Screen / Mix / Subtract
Sub-Mode: In Split Screen Mode: L|R Squeeze / L|R / T-B
In Subtract Mode: Subtract / Absolute Value
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Multi-Function Knob In Split Screen Mode: Split Position
In Mix Mode: Proportion
In Subtract Mode: Threshold
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
Mix Mode
Subtract Mode
Absolute Value Subtract Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VV618CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

VD618CS (NTSC & PAL to DVI)
Owner's Manual:
VD618CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Mix two video images in a double exposure effect
Subtracts, and compares two video inputs
Freeze Frame
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Mode: Split Screen / Mix / Subtract
Sub-Mode: In Split Screen Mode: L|R Squeeze / L|R / T-B
In Subtract Mode: Subtract / Absolute Value
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Multi-Function Knob In Split Screen Mode: Split Position
In Mix Mode: Proportion
In Subtract Mode: Threshold
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
Mix Mode
Subtract Mode
Absolute Value Subtract Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VD618CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

High Definition Units:

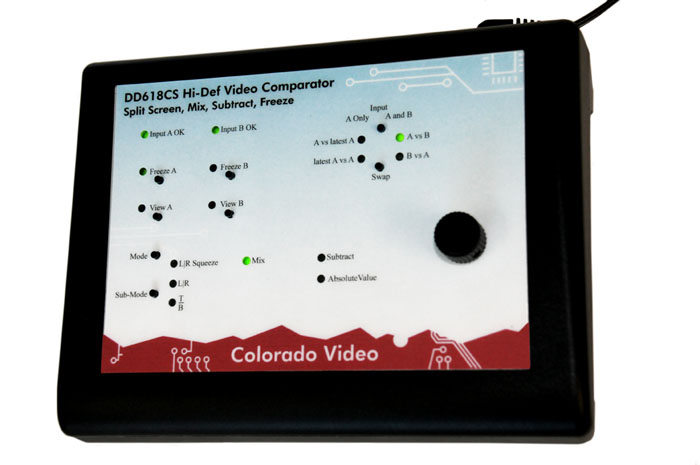

DD618CS (DVI/HDMI)
Owner's Manual:
Manual-DD618CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Mix two video images in a double exposure effect
Subtracts, and compares two video inputs
Freeze Frame
Controls :
Mode: Split Screen / Mix / Subtract
Sub-Mode: In Split Screen Mode: L|R Squeeze / L|R / T-B
In Subtract Mode: Subtract / Absolute Value
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Multi-Function Knob In Split Screen Mode: Split Position
In Mix Mode: Proportion
In Subtract Mode: Threshold
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
Mix Mode
Subtract Mode
Absolute Value Subtract Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
DD618CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
VV618CS
$3000.00
VD618CS
$3150.00
DD618CS
$3200.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for Comparator
$0.00
DVIM13DVIM
$29.00
DVIM6HDMI
$45.00
DVIMHDMIF
$18.99

All prices F.O.B. Boulder, Colorado.
