613 Series

     Video Screen Splitter, Video Split Screen Generator
DVI-D, HDMI, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition


Display Two Pictures on One Screen




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
NTSC/PAL Standard Definition

Features
2 Inputs, 1 Outputs
Split Screen
Left-Right or Top-Bottom display positions
Adjustable Split Position
Freeze either input
Store an image for reference or continuous comparison

Model 613 Series Standard and High Definition Video Screen Splitters combine two video pictures for display on one monitor.

Applications
Surveillance
Images from two security cameras can be combined onto one video screen, making it easier for personnel to monitor both camera locations
Legal, Courtroom
Video tapes, conferences, and courtroom proceedings can use the Model 613 Series to show two parties on one screen or monitor
Forensics Image Comparison
The Model 613 series can be used to present a reference image side-by-side with an image under examination, making image comparison and analysis easier
Edge Comparison and Alignment for Large Objects
Opposite side or ends of large items can be closely viewed simultaneously, side-by-side or top to bottom, with two carefully aligned cameras connected to a single monitor or screen

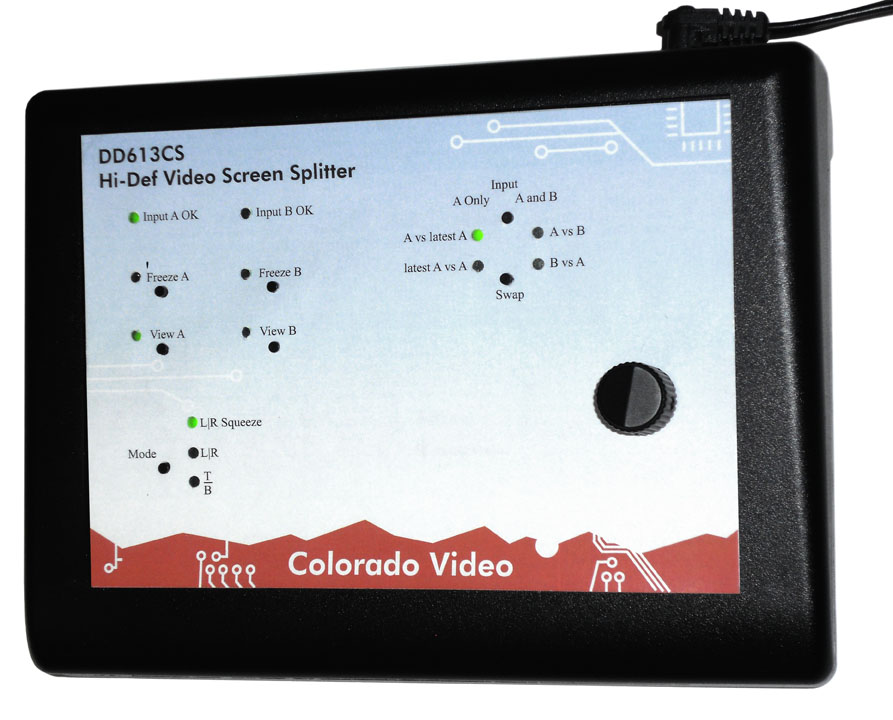

DD613CS Front Panel
Click to Enlarge
DD613CS

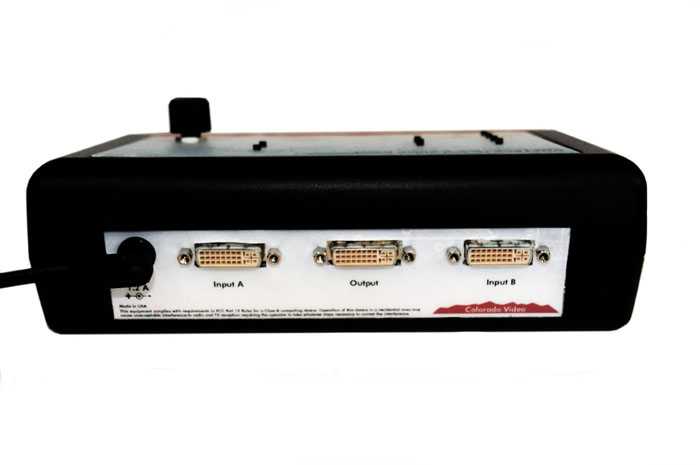

Rear Panel
VV613C
Front Panel
VV613C
Rear Panel
Split Screen Mode
Split Screen Mode allows portions of each of two pictures to be displayed in a corresponding portion of a video display. This mode can split a video image, wipe or display two video images or a dual video image, one image over the other, top to bottom, or side by side, to make portions of each viewable on a single monitor.

A front panel control selects whether the screen is split horizontally or vertically. A control knob determines the proportion of the screen allocated to each source, adjustable from 0% to 100%. The user can freeze either of the inputs and either input can be viewed exclusively by push of a button.
Given Input A
and Input B
Split Vertically
Or Horizontally
Position of split is adjustable
Positions can be swapped

Squeeze Mode
Normally, a video screen splitter cuts away a portion of each picture in order to make room on the screen or monitor for the corresponding portion of the other picture. For instance, if set for a 50%/50% split display, only 50% of each picture will be visible. Therefore, special attention should be taken in aiming the cameras at their subjects.

The Model  613 Series provides a unique "anamorphic" mode that squeezes two full pictures to fit, in their entirety, side-by-side, on your display in a 50%/50% split. This optional squeezing causes subjects to look "tall and skinny".
Given Input A
and Input B
Right/Left Squeeze Mode squeezes both images instead of cropping to fit
(50-50 Vertical Split only)

For these additional features, See the 618 Series:
Split Screen
Left-Right or Top-Bottom
Adjustable Split Position
Mixing
Double Exposure Effect
Adjust the proportion of each input
Fade, dissolve, or overlap from one picture to another

Functionality Synonyms:

Video Screen Splitter
Video Monitor Splitter
Video Split Screen
Video Wiper
Video Display Splitter

Specifications

Standard Definition Units:

VV613CS, VV613C
(NTSC & PAL)
Owner's Manual:
VV613CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Freeze Frame
Controls :
Mode: L|R Squeeze / L|R / T-B
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A ("CS" Versions Only)
View B ("CS" Versions Only)
Split Position Knob
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A ("CS" Versions Only)
View B ("CS" Versions Only)
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VV613CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV613C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD613CS, VD613C
(NTSC & PAL to DVI)
Owner's Manual:
VD613CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Freeze Frame
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Mode: L|R Squeeze / L|R / T-B
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A ("CS" Versions Only)
View B ("CS" Versions Only)
Split Position Knob
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A  ("CS" Versions Only)
View B  ("CS" Versions Only)
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VD613CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD613C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

DD613CS, DD613C
(DVI/HDMI)
Owner's Manual:
Manual-DD613CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Split Screen (Top/Bottom or Left/Right)
Freeze Frame
Controls :
Mode: L|R Squeeze / L|R / T-B
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A  ("CS" Versions Only)
View B  ("CS" Versions Only)
Split Position Knob
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A ("CS" Versions Only)
View B  ("CS" Versions Only)
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
DD613CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD613C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (spec when ordering) VAC

CC613CS, CC613C
(VGA)
Owner's Manual:
Manual-CC613CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Split Screen (Top/Bottom or Left/Right)
Freeze Frame
Controls :
Mode: L|R Squeeze / L|R / T-B
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A ("CS" Versions Only)
View B ("CS" Versions Only)
Split Position Knob
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A ("CS" Versions Only)
View B ("CS" Versions Only)
Split Screen L|R Squeeze Mode
Split Screen L|R Mode
Split Screen T-B Mode
A vs latest A
latest A vs A
A vs B
B vs A
Model:
CC613CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC613C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (spec when ordering) VAC
