442 Series

Video Comparator
DVI-D, HDMI, HD-SDI, TVI/AHD Hi-Definition
NTSC/PAL Standard Definition


Swap Left-Right, Flip Top-Bottom, or Rotate 180°





Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
NTSC/PAL Standard Definition
2 Inputs, 1 Output
Subtract
Set to see only the difference between pictures
Set to see only motion by continually showing the difference between successive frames.
Freeze either input
Store an image for reference or continual comparison

The Model 442 Series Video Subtractor shows the differences between two images on one monitor.

Subtract or Compare mode allows you to subtract or compare two video images. The unit performs a video image comparison by subtracting the image stored in its memory from the active picture at its input or subtracting one live picture from another live picture. Comparison (subtraction) of two live video streams is also possible. This mode is very useful for inspection, registration, interferometry, quality control, surveillance and other applications where an easily viewed comparison of two video images can be used for decision making or process control.

The Subtract or Compare mode has two selectable output modes. One provides the difference plus 0.5. The other provides the absolute value of the difference. Additionally, a button is provided to invert the output thereby showing the reference minus the input instead of the input minus the reference. A "Difference Threshold" control allows adjustment of the unit's sensitivity to differences.
Given Input A
Subtract Input B
Output
Mix Ratio is adjustable
Given Input B
Subtract Input A
Output
Mix Ratio is adjustable

An additional operational mode allows subtraction of each video frame from the previous frame to provide "frog's eye" capability, displaying only motion in the scene being monitored by the input video camera.
Given Input A
Subtract Input A
Output
Output
Mix Ratio is adjustable
For additional features, See the 618 Series:
Split Screen
Left-Right or Top-Bottom
Adjustable Split Position
Mixing
Double Exposure Effect
Adjust the proportion of each input
Fade, dissolve, or overlap from one picture to another
Functionality Synonyms:
Video Subtractor
Video Comparator
Video Image Comparison
Subtract Video
Specifications

Standard Definition Units:

VV442CS, VV442C (NTSC & PAL)
Owner's Manual:
VV442CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Freezes, subtracts, and compares two video inputs
Controls :
Mode: A-B+50% / |A-B|
Freeze A: Freezes A Input (except “View A” Mode)
Freeze B: Freezes B Input (except “View B” Mode)
View A: Sends A Input directly to output
View B: Sends B Input directly to output
Input: A Only / A and B
Swap: A vs B / B vs A
Indicators:
Input A OK
Input B OK
Input A Frozen
Input B Frozen
Viewing Input A Only
Viewing Input B Only
Subtract: A-B+50%
Subtract:  |A-B| (absolute value)
A vs. B
B vs. A
A vs. Latest A
Latest A vs. A
Model:
VV442CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV442C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD442CS, VD442C (NTSC/PAL to DVI)
Owner's Manual:
Manual-VD442CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Freezes, subtracts, and compares two video inputs
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Mode: A-B+50% / |A-B|
Freeze A: Freezes A Input (except “View A” Mode)
Freeze B: Freezes B Input (except “View B” Mode)
View A: Sends A Input directly to output
View B: Sends B Input directly to output
Input: A Only / A and B
Swap: A vs B / B vs A
Indicators:
Input A OK
Input B OK
Input A Frozen
Input B Frozen
Viewing Input A Only
Viewing Input B Only
Subtract: A-B+50%
Subtract:  |A-B| (absolute value)
A vs. B
B vs. A
A vs. Latest A
Latest A vs. A
Model:
VD442CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD442C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

DD442CS, DD442C (DVI/HDMI)
Owner's Manual:
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Freezes, subtracts, and compares two video inputs
Controls :
Mode: A-B+50% / |A-B|
Freeze A: Freezes A Input (except “View A” Mode)
Freeze B: Freezes B Input (except “View B” Mode)
View A: Sends A Input directly to output
View B: Sends B Input directly to output
Input: A Only / A and B
Swap: A vs B / B vs A
Indicators:
Input A OK
Input B OK
Input A Frozen
Input B Frozen
Viewing Input A Only
Viewing Input B Only
Subtract: A-B+50%
Subtract:  |A-B| (absolute value)
A vs. B
B vs. A
A vs. Latest A
Latest A vs. A
Model:

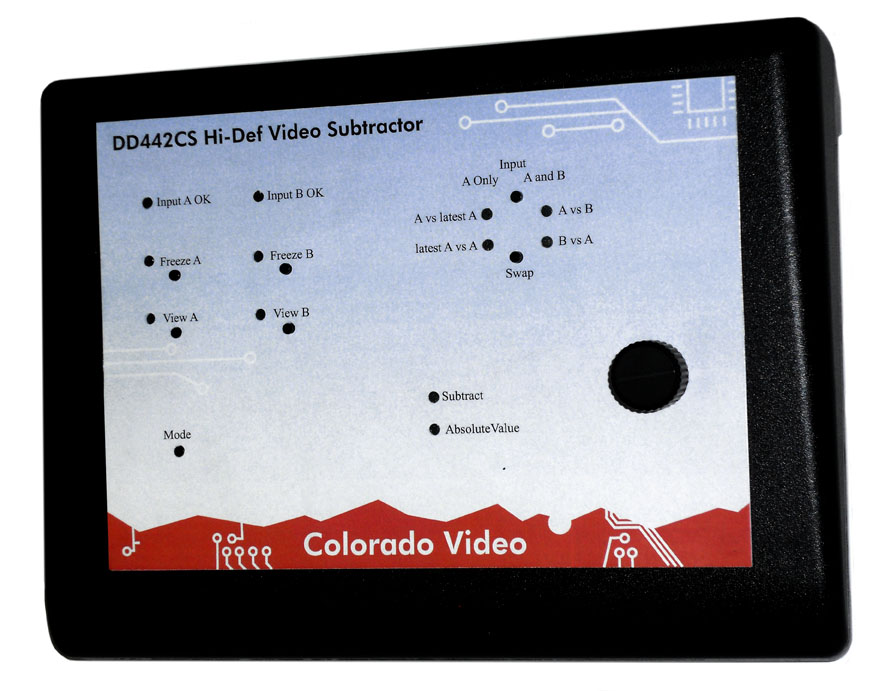

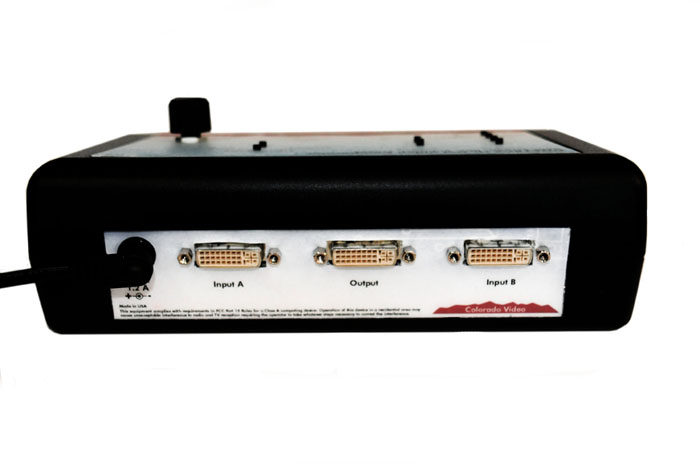

DD442CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD442C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Video Subtractor with Aluminum Chassis
$100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Subtractor
$25.00

All prices F.O.B. Boulder, Colorado.
