424 Series

Video Image Rotators

DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition



Rotate and/or Mirror Live Video 90°, 180°, or 270°




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition

Rotate Live Video
90° Clockwise
90° Counter Clockwise
180°

Zoom In and Out
Reduce picture size to fit when rotated 90° or 270°
Increase picture size to fill the display when rotated 90° or 270°
Continuously Variable Zoom, between 9/16 X to 16/9 X or 3/4 X to 4/3 X depending on aspect ratio

Mirror & Rotate Simultaneously
Mirror and Rotate 0°
Mirror and Rotate 90° Clockwise
Mirror and Rotate 90° Counter Clockwise
Mirror and Rotate 180°

Unbeatable Video Compatability
Interlaced or Progressive Scan Video
Hundreds of Resolution Formats
Includes 1080p, 1080i, 720p, UXGA, 24, 25, 30, and 60 FPS
Choose from DVI-D, VGA, HD-SDI, TVI, CVI, AHD, NTSC, or PAL Inputs
16 x 9, 4 x 3, and Other Picture Aspect Ratios
Square or Rectangular Pixel Formats

On-Screen Menu
Accesses All Functions
Adjustable Menu Size and Position
Friendly Icons and Terminology Easily Navigated

Power input requirement is 5 VDC at less than 1.5 Amps. A UL listed NEMA 1-15P AC adapter is included for customers in North America.
Specifications

Standard Definition Units:

VV424CS, VV424C
(NTSC & PAL)
Owner's Manual:
VV424CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (CVBS) (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Rotates a Real-Time Standard-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:
VV424CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV424C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD424CS, VD424C (NTSC/PAL to DVI)
Owner's Manual:
VD424CS.pdf
Input Signal:
NTSC or PAL Composite Video (CVBS)
Input Connector:
BNC Female
Output Signal:
DVI-D 480i30 (NTSC) /576i25 (PAL)
Output Connector:
DVI-I Female
Functions:
Rotates a Real-Time Standard-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:
VD424CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD424C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD424CS, TD424C
(TVI/CVI/AHD to DVI)
Owner's Manual:
TD424CS.pdf
Input Signal:
TVI, CVI, or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Rotates a Real-Time Hi-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Converts TVI, CVI, or AHD Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:
TD424CS: TVI, CVI, or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD424C: TVI, CVI, or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

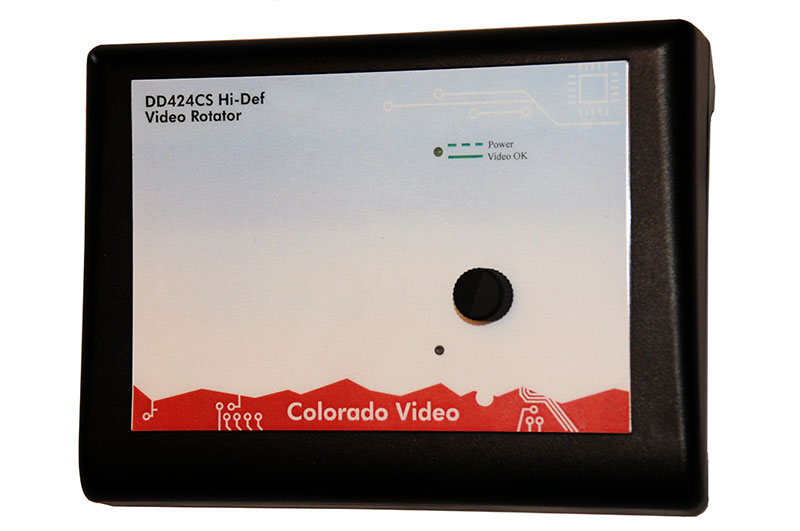

DD424CS, DD424C
(DVI/HDMI)
Owner's Manual:
Manual-DD424CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Rotates a Real-Time Hi-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:

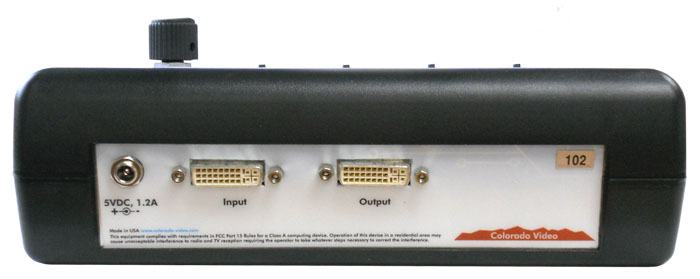

DD424CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD424C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD424CS, HD424C
(HD-SDI to DVI)
Owner's Manual:
HD424CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Rotates a Real-Time Hi-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Converts HD-SDI Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:
HD424CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD424C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC424CS, CC424C
(VGA)
Owner's Manual:
Manual-CC424CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Rotates a Real-Time Hi-Def Video Picture 0°, 90°, 180°, or 270°
Zooms 9/16 to 16/9 X or 3/4 to 4/3 X, Continuously Variable
Controls :
Button (Selects Menu, Enters Selections)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Model:
CC424CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC424C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
DD424CS
$1490.00
Option-RM
Rackmount installed on any Video Rotator with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Rotator
$55.00

All prices F.O.B. Boulder, Colorado.
