443 Series

     Video Peak Store, Video Peak Value Detector
DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition


Store Peak Values of Brightness or Darkness




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition

The Model 443 Video Peak Store will store a new incoming pixel if it is brighter than the corresponding pixel already stored in frame memory. It stores the brightest aspects over time of scene in front of a video camera. The Peak Store capability is ideal for capturing lightning flashes occuring over seconds or days, or showing the track of a bright object as it's moved over a dark background.

The Video Peak Store can also be set to store a new incoming pixel if it is darker than the corresponding pixel already stored in frame memory. In this mode, it stores the darkest aspects over time of a scene in front of a video camera. The Dark-Peak Store capability is ideal for showing the track of a dark object as it's moved over a bright background, such as an ant on a sidewalk or a bird in the sky, allowing for path and motion analysis.

A Decay function can be activated to cause previously captured peak values to fade or decay to current-input values over an adjustable period of time. In this mode, a lightning strike would be instantly captured and then slowly fade away until only the background scene is again present in the picture. The trails of tracked objects would fade behind them as they moved. The decay time is adjustable in steps of powers of two from 2 to 32768 frames (about 1/15 to 1092 seconds for NTSC video).

Functionality Synonyms:

Video Peak Value Detector
Video Peak Store
Specifications

Standard Definition Units:

VV443CS, VV443C
(NTSC & PAL)
Owner's Manual:
VV443CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Stores Pixels based on Max/Min Values
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:
VV443CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV443C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD443CS, VD443C (NTSC & PAL to DVI)
Owner's Manual:
VD443CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Stores Pixels based on Max/Min Values
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:
VD443CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD443C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD443CS, TD443C
(TVI/AHD to DVI)
Owner's Manual:
TD443CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Stores Pixels based on Max/Min Values
Converts TVI or AHD Input to DVI-D Output
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:
TD443CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD443C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

DD443CS, DD443C
(DVI/HDMI)
Owner's Manual:
Manual-DD443CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Stores Pixels based on Max/Min Values
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:

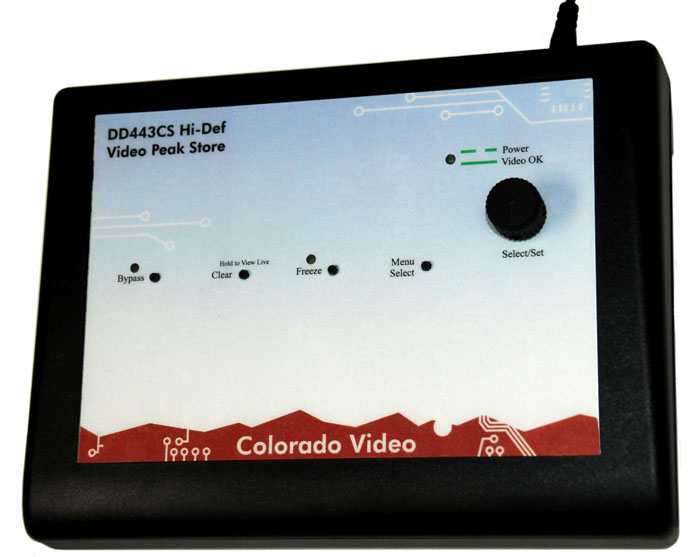

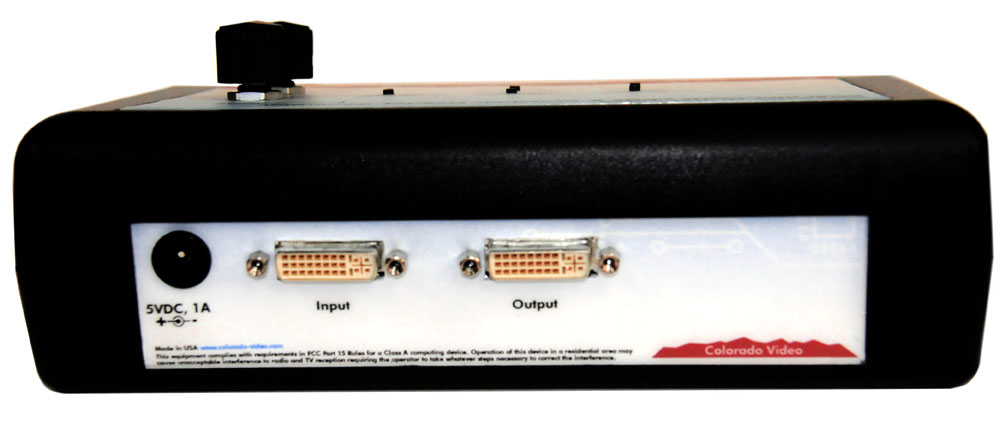

DD443CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD443C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD443CS, HD443C
(HD-SDI to DVI)
Owner's Manual:
HD443CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Stores Pixels based on Max/Min Values
Converts HD-SDI Input to DVI-D Output
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:
HD422CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD422C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC443CS, CC443C
(VGA)
Owner's Manual:
Manual-CC443CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Stores Pixels based on Max/Min Values
Controls :
Menu Select (button)
Freeze/Live toggle (button)
Clear (button)
Bypass/Normal toggle (button)
Select Set (knob)
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Bypass
Freeze
Model:
CC443CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC443C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Video Peak Store with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Peak Store
$45.00

All prices F.O.B. Boulder, Colorado.
