614 Series

     Video Mixer, Freeze Frame
DVI-D or HDMI Hi-Definition
NTSC/PAL Standard Definition


Mix two Images on One Screen





Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
NTSC/PAL Standard Definition

Features
2 Inputs, 1 Outputs
Double Exposure Effect
Adjust the proportion of each input
Fade, dissolve, or overlap from one picture to another
Freeze either input
Store an image for reference or continuous comparison

The Model 614 Series Standard and High Definition Video Mixer displays two video sources on one monitor by forming a double exposure effect.
The 614 Series Mix mode provides a double exposure effect by adding two video signals or images together.

The front panel control knob can be used to fade from one input to the other or to add the two sources together to varying degree.
Given Input A
and Input B
Output
Mix Ratio is adjustable

Functionality Synonyms:
Video Signal Mixer
Video Dissolver
Video Fader (Two Input Fader)
Video Combiner
Video Overlay

For additional features, See the 618 Series:
Split Screen
Left-Right or Top-Bottom
Adjustable Split Position
Mixing
Double Exposure Effect
Adjust the proportion of each input
Fade, dissolve, or overlap from one picture to another
Specifications

Standard Definition Units:

VV614CS
(NTSC & PAL)
Owner's Manual:
VV614CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Mix two video images in a double exposure effect
Freeze Frame
Controls :
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Knob: Proportion
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VV614CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

VD614CS
(NTSC & PAL to DVI)
Owner's Manual:
VD614CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Mix two video images in a double exposure effect
Freeze Frame
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Knob: Proportion
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
A vs latest A
latest A vs A
A vs B
B vs A
Model:
VD614CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

High Definition Units:

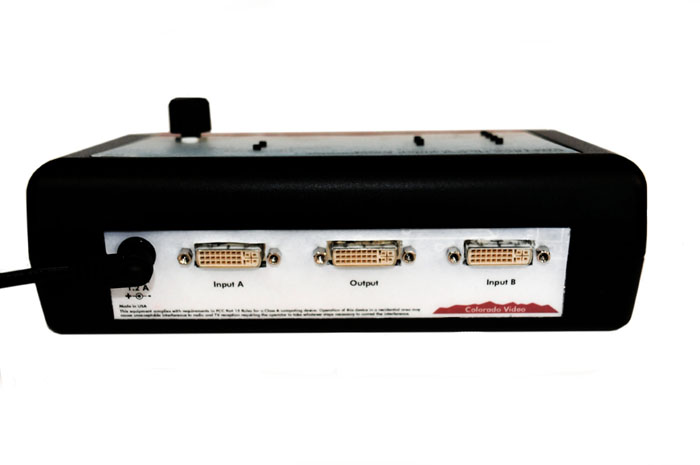

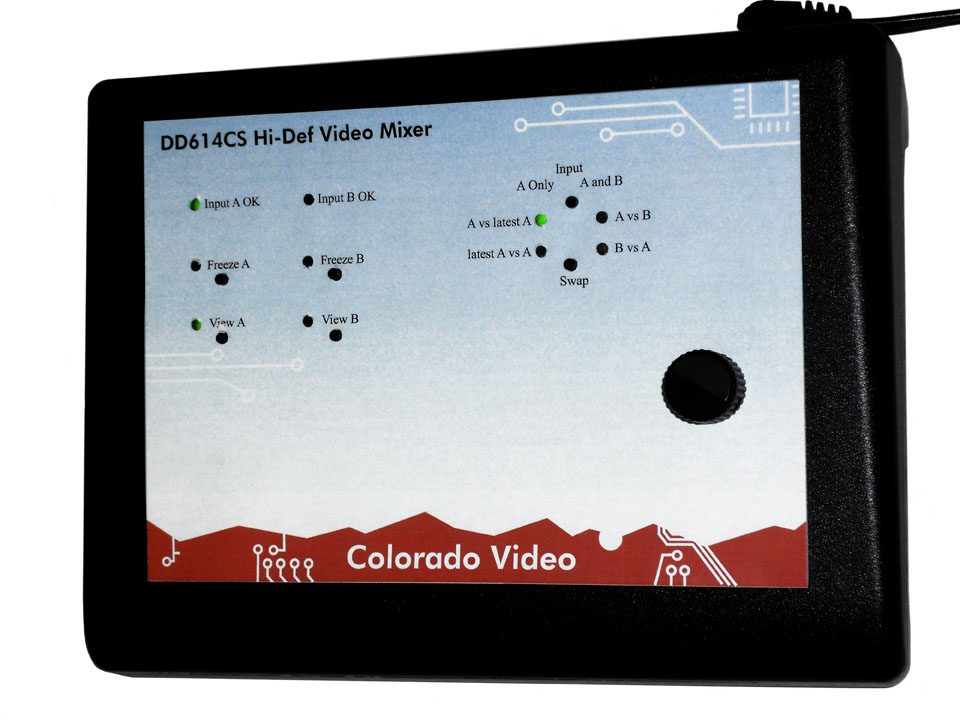

DD614CS
(DVI/HDMI)
Owner's Manual:
Manual-DD614CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Mix two video images in a double exposure effect
Freeze Frame
Controls :
Input: A Only / A and B
Swap: In A Only Input Mode: A vs latest A / latest a vs A
In A and B Input Mode: A vs B / B vs A
Freeze A
Freeze B
View A
View B
Knob: Proportion
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Input A OK
Input B OK
Freeze A
Freeze B
View A
View B
A vs latest A
latest A vs A
A vs B
B vs A
Model:
DD614CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)

Online Ordering and Pricing
Model
Description
Price
Add to Cart
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Mixer
$0.00

All prices F.O.B. Boulder, Colorado.
