425 Series

Video Zoom
DVI-D, HDMI, HD-SDI, TVI/AHD Hi-Definition
NTSC/PAL Standard Definition


Freeze, Zoom, and Pan Hi-Def Video





Description

Zoom, Pan, and Freeze Live High or Standard Definition Video
Up to 10:1 Magnification
Pan to Area of Interest
Freeze for Close Examination

Unbeatable Video Compatability
Interlaced or Progressive Scan Video
Hundreds of Resolution Formats
Includes 1080p, 1080i, 720p, UXGA, 24, 25, 30, and 60 FPS
Choose from DVI-D, HD-SDI, TVI, CVI, AHD, NTSC, or PAL Inputs
16 x 9, 4 x 3, and Other Picture Aspect Ratios
Square or Rectangular Pixel Formats

On-Screen Menu
Accesses All Functions
Adjustable Menu Size and Position
Friendly Icons and Terminology Easily Navigated

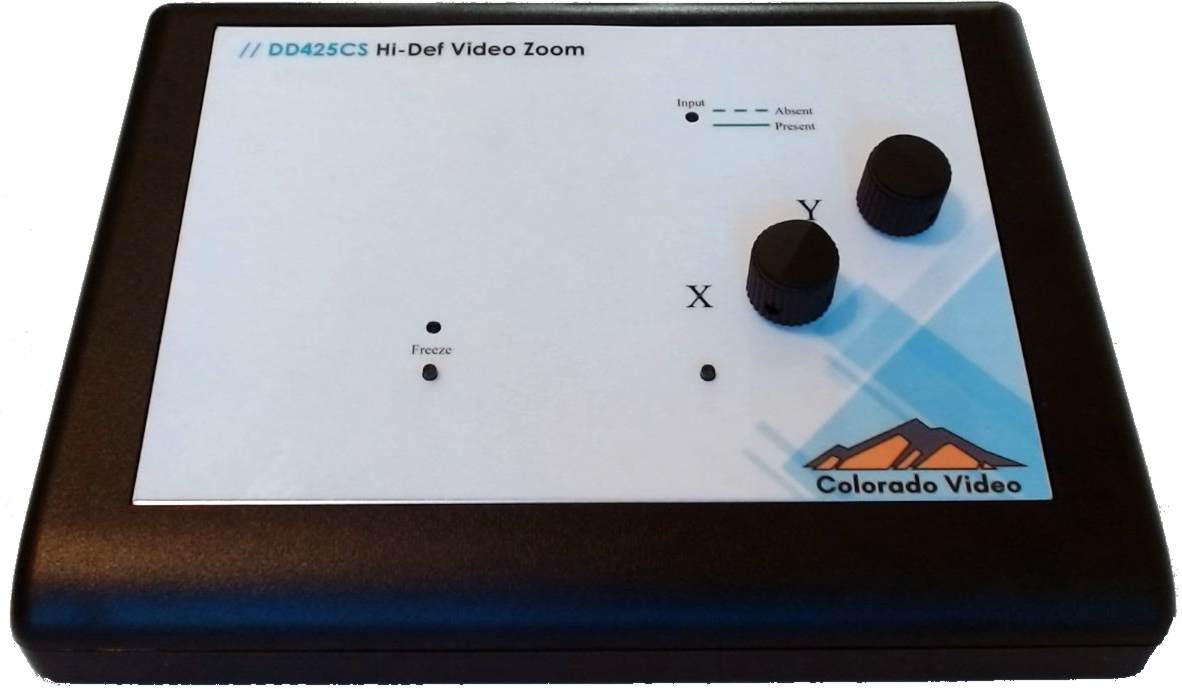

Zoom, Pan, and Freeze Controls featured on the 425 series

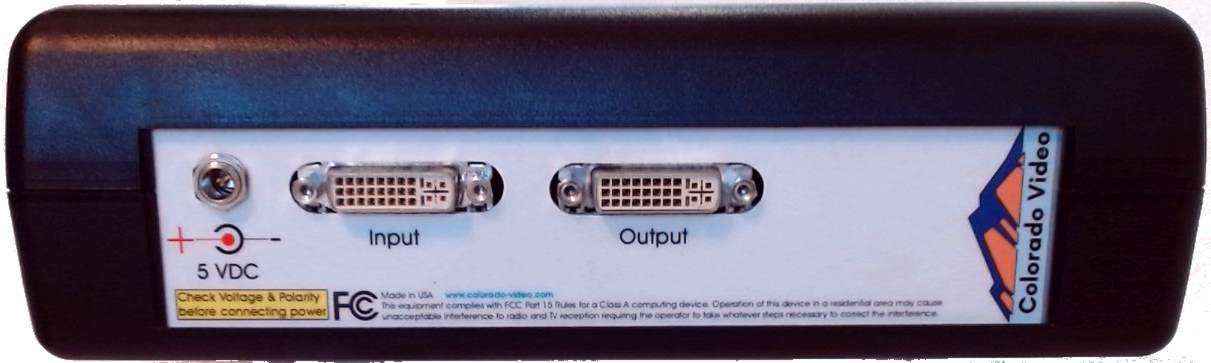

Rear panel connections on Model DD425CS for DVI (HDMI) Video
Zoom in, magnify or enlarge a video image or picture with the Model 425 series. The 425 Series Video Zoom can enlarge a selected portion of a color video image to fill the entire display for closer examination. The Video Zoom can operate on a live video picture or image or one frozen in its display memory.

Any portion of the input video picture or image may be selected for enlargement or magnification using four pushbutton position controls that move the selected region up, down, left, or right.  The freeze function can be invoked by means of a front panel button.

Functionality Synonyms:
Video Enlarger
Video Magnifier
Specifications

Standard Definition Units:

VV425CS, VV425C
(NTSC & PAL)
Owner's Manual:
VV425CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Magnifies, Zooms, or Enlarges a Live or Frozen Video Picture
Variable Zoom up to 10 X
Controls :
Button (Selects Menu, Enters Selections)
Freeze (button) (Selects Live or Frozen Picture)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Freeze
Model:
VV425CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV425C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD425CS, VD425C
(NTSC & PAL to DVI)
Owner's Manual:
VD425CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Magnifies, Zooms, or Enlarges a Live or Frozen Video Picture
Variable Zoom up to 10 X
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Freeze (button) (Selects Live or Frozen Picture)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Freeze
Model:
VD425CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD425C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD425CS, TD425C
(TVI/AHD to DVI)
Owner's Manual:
TD422CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Magnifies, Zooms, or Enlarges a Live or Frozen Video Picture
Variable Zoom up to 10 X
Converts TVI or AHD Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Freeze (button) (Selects Live or Frozen Picture)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Freeze
Model:
TD425CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD425C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

DD425CS, DD425C
(DVI/HDMI)
Owner's Manual:
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Magnifies, Zooms, or Enlarges a Live or Frozen Video Picture
Variable Zoom up to 10 X
Controls :
Button (Selects Menu, Enters Selections)
Freeze (button) (Selects Live or Frozen Picture)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Freeze
Model:
DD425CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD425C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD425CS, HD425C
(HD-SDI to DVI)
Owner's Manual:
HD425CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Magnifies, Zooms, or Enlarges a Live or Frozen Video Picture
Variable Zoom up to 10 X
Converts HD-SDI Input to DVI-D Output
Controls :
Button (Selects Menu, Enters Selections)
Freeze (button) (Selects Live or Frozen Picture)
Multi-Function Knob
Indicators:
Power (Flashing) Video OK (Steady)
Freeze
Model:
HD425CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD425C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Optional Rackmount installed on any VV425C, VD425C, or DD425C
$100.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Zoom
$25.00

All prices F.O.B. Boulder, Colorado.
