441 Series

Video Frame Store, Video Frame Grabber, Video Freeze Frame
DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition

Grab or Freeze a Frame from a Video Image.


Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition


Features
View Frozen or Live Picture at the Push of a Button
Freeze Automatically at Intervals up to 10 Seconds
Synchronize with Industrial Processes
Freeze Interval Timer
External Live/Freeze Toggle Input
Freeze Moving Subjects for Inspection
The Model 441C Series Video Frame Store, is a full frame, high resolution, video memory. This Video Frame Store is a stand-alone, independent, non-computer based frame grabber. In its "live" mode, the input signal will pass to the output. Toggling the 441 to its "freeze" mode causes it to freeze a frame of video from the input and provide it at its output continually, until it is given a command to toggle back to the live image. The freeze/live command can be given by a front-panel push-button or rear-panel pulsed contact closure input.  The 441's functionality can be especially beneficial in the process of video inspection inspection, such as those requiring scruitiny of sewer lines and fiber optic cable.

A bypass mode can also be activated to enable viewing the live picture without updating the stored image when bringing it back to view.

A built-in timer allows automatic updating and viewing of the frame memory contents at intervals of full frame rate to once per ten seconds.

Power input requirement is 5 VDC at at less than 1 Amp. A UL listed AC adapter is included.

Specifications

Standard Definition Units:

VV441CS, VV441C
(NTSC & PAL)
Owner's Manual:
VV441CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Freezes Video Upon Command
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass
Model:
VV441CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV441C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD441CS, VD441C (NTSC & PAL to DVI)
Owner's Manual:
VD441CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Freezes Video Upon Command
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass
Model:
VD441CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD441C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD441CS, TD441C
(TVI/AHD to DVI)
Owner's Manual:
TD441CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Freezes Video Upon Command
Converts TVI or AHD Input to DVI-D Output
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass
Model:
TD441CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD441C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

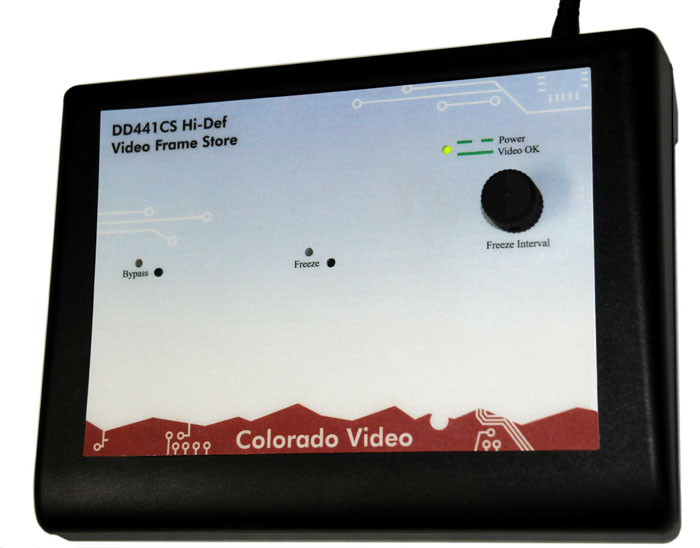

DD441CS, DD441C
(DVI/HDMI)
Owner's Manual:
Manual-DD441CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Freezes Video Upon Command
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass

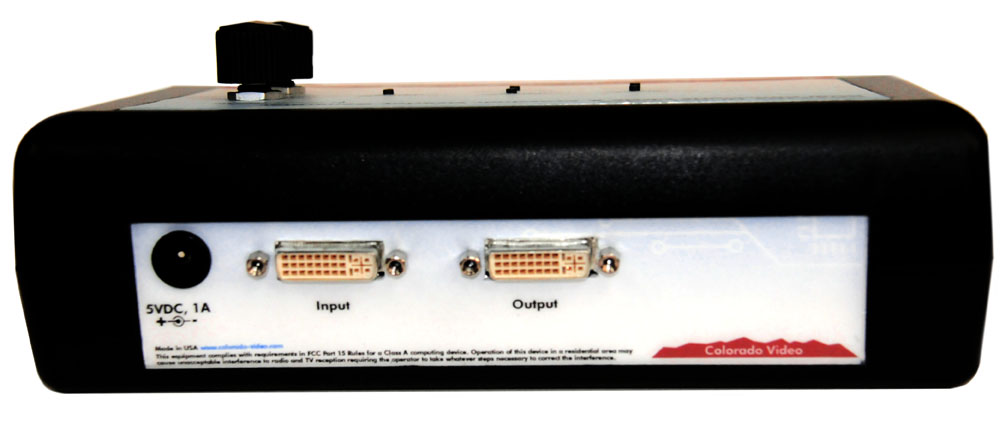

Model:
DD441CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD441C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

HD441CS, HD441C
(HD-SDI to DVI)
Owner's Manual:
HD441CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Freezes Video Upon Command
Converts HD-SDI Input to DVI-D Output
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass
Model:
HD441CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD441C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC441CS, CC441C
(VGA)
Owner's Manual:
Manual-CC441CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Freezes Video Upon Command
Controls :
Bypass/Normal (push button toggle)
Freeze/Live (push button toggle)
Freeze Interval (Every Frame - Every 10 Seconds
Freeze/Live Control: BNC, ground center pin to toggle freeze/live
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
Freeze
Bypass
Model:
CC441CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC441C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC
Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Video Freeze Frame with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Freeze Frame
$55.00

All prices F.O.B. Boulder, Colorado.
