449 Series

     Video Frame Averaging Noise Reduction System
DVI-D, HDMI, HD-SDI, TVI/AHD, VGA (Component) Hi-Definition
or NTSC/PAL Standard Definition


Filter Noise out of Video Signal




Description

Available for Progressive and Interlaced Formats up to 1080 P60:
DVI-D
HDMI (using DVI adapter)
VGA (Component Analog RBG or YUV, Specify when ordering)
TVI (DVI Output)
AHD (DVI Output)
HD-SDI (DVI Output)
NTSC/PAL Standard Definition

Features
Hi-Definition output signal can be frozen for continuous display and the filtering function halted
Live Input can be viewed without averaging
Averaging can be reset and restarted at any time
Automatically detects the video input resolution, provide the same resolution at output
The Colorado Video Model 449 Series Dynamic High Definition Video Noise Filter can average and therefore filter or reduce dynamic video noise (like "snow" or "static") out of a hi-def video signal by essentially averaging frames over time. This type of video noise filtering or reduction is best suited for signals with rapidly changing noise in pictures of relatively static (unchanging) subjects.

The Model 449 Dynamic Video Noise Filter provides a running quasi-average, or temporal filtering, of the video signal at its input. More precisely, the value for any given pixel in the unit's output is determined by the equation:



where Pn is the value of the pixel in the current output frame, Pi is the value of the pixel in the current input frame, Pn-1 is the value of the pixel in the previous output frame, and t is a user selected time constant. This equation is solved for each pixel at the full input video frame rate. As the user selects larger values for t, the exponentially decaying influence of a given pixel's value in a particular input frame will persist over a longer period of time in subsequent output frames. The Model 449 Series allows filtering of 1x to 32,768x (in steps of powers of two), on a running basis.

Functionality Synonyms:

Video Freeze Frame
Video Frame Store
Video Frame Grabber
Video Memory
Specifications

Standard Definition Units:

VV449CS, VV449C
(NTSC & PAL)
Owner's Manual:
VV449CS.pdf
Input/Output Signal:
NTSC or PAL Composite Video (Output will be same signal as Input)
Input/Output Connector:
BNC Female
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:
VV449CS: NTSC or PAL Composite Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VV449C: NTSC or PAL Composite Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

VD449CS, VD449C (NTSC & PAL to DVI)
Owner's Manual:
VD449CS.pdf
Input Signal:
NTSC or PAL Composite Video
Input Connector:
BNC Female
Output Signal:
DVI-D, 480i60 or 576i50
Output Connector:
DVI-I Female
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Converts NTSC/PAL Composite Input to DVI-D Output
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:
VD449CS: NTSC/PAL Composite Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
VD449C: NTSC/PAL Composite Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

High Definition Units:

TD449CS, TD449C
(TVI/AHD to DVI)
Owner's Manual:
TD449CS.pdf
Input Signal:
TVI or AHD Hi-Def Composite Analog
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Converts TVI or AHD Input to DVI-D Output
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:
TD449CS: TVI or AHD Input  & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
TD449C: TVI or AHD Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

DD449CS, DD449C
(DVI/HDMI)
Owner's Manual:
Manual-DD449CS.pdf
Input/Output Signal:
DVI-D
Input/Output Connector:
DVI-I Female
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:

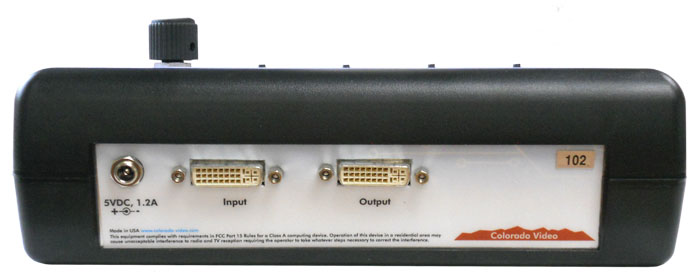

DD449CS: DVI-D Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
DD449C: DVI-D Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (spec when ordering) VAC

HD449CS, HD449C
(HD-SDI to DVI)
Owner's Manual:
HD449CS.pdf
Input Signal:
SDI, HD-SDI, or 3G-SDI
Input Connector:
BNC Female
Output Signal:
DVI-D
Output Connector:
DVI-I Female
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Converts HD-SDI Input to DVI-D Output
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:
HD449CS: HD-SDI Input & DVI-D Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
HD449C: HD-SDI Input & DVI-D Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

CC449CS, CC449C
(VGA)
Owner's Manual:
Manual-CC449CS.pdf
Input/Output Signal:
RGBHV Analog (VGA)
Input/Output Connector:
15-Pin Female DE-15
Functions:
Provides a running average of a selectable number of frames to reduce dynamic noise
Controls :
Noise Reduction Decrease
Noise Reduction Increase
Freeze
Live/Reset
Indicators:
Power/Video: Flashing: Power OK, Steady: Video OK
24db
12db
6db
3db
Freeze
Model:

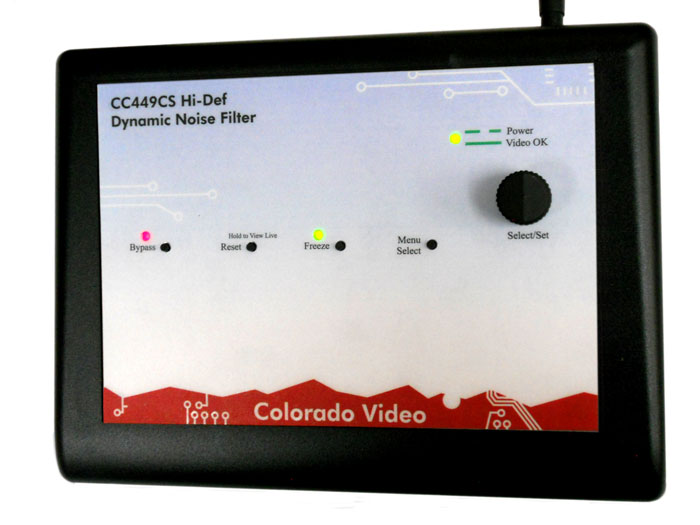

CC449CS: VGA or Component Input & Output
Size: 8.875"W x 6.5"L x 2.75"H sloping to 1.25"H
Chassis: Black ABS
Mounting: Free standing desktop
Power Connector: 5.5 x 2.1 mm coaxial power jack, center-pin positive
Power Input: 5 VDC 1.0 A (120 VAC Adaptor included where appropriate)
Model:
CC449C:  VGA or Component Input & Output
Size: 8"W x 8"L x 1.67"H
Chassis: Painted Aluminum
Mounting: Free standing, rack mount optional
Power Connector: IEC
Power Input: 120 or 240 (specify when ordering) VAC

Online Ordering and Pricing
Model
Description
Price
Add to Cart
Option-RM
Rackmount installed on any Video Frame Averager with Aluminum Chassis
$75.00
and RoHS
CE and RoHS Compliance required by the EU (and some other jurisdictions) for any Video Frame Averager
$45.00

All prices F.O.B. Boulder, Colorado.
